| ※Spindle
Shaper |
|
|
|
Cabinet shop series |
|
|
|
Specifications |
|
|
 |
Model
|
FTY-101 |
FTY-101S |
| Spindle
capacity: |
|
|
| 3/4"
(19.05mm) (under nut) |
3"
(76.2mm) |
3"
(76.2mm) |
| 1"
(25.4mm) (under nut) |
4"
(101.6mm) |
4"
(101.6mm) |
| 1-1/4"
(31.75mm ) (under nut) |
4-1/2"
(114.3mm) |
4-1/2"
(114.3mm) |
| Spindle
travel |
3"
(75mm) |
3"
(75mm) |
| Spindle
speeds |
7,500
& 10,000 RPM (2 speeds) |
7,500
& 10,000 RPM (2 speeds) |
|

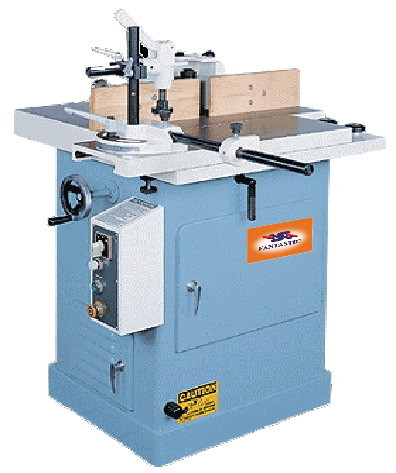

FTY-101 |
Sliding
table size |
- |
27-1/4"
x 9" |
|
|
Sliding
table stroke |
- |
19-5/8"
(500mm) |
| Table
size |
32"
x 27 1/2" (813 x 698mm) |
32"
x 27 1/2" (813 x 698mm) |
| Table
height |
34"
(863mm) |
34"
(863mm) |
| Table
insert opening diameter |
5-1/2"
(140mm) |
5-1/2"
(140mm) |
| Fence
size (each side) |
4-1/2
x 13" (115 x 330mm) |
4-1/2
x 13" (115 x 330mm) |
| Motor |
3HP
(5HP, 7.5HP optional) |
3HP
(5HP, 7.5HP optional) |
| Net
weight |
209
kgs |
218
kgs |
| Gross
weight |
236
kgs |
245
kgs |
| Packing
dimension |
864
x 864 x 1118 mm |
864
x 864 x 1118 mm |
|
FTY-101S |
|
|
|
|
|
|
